Hydroxide Ion Selective Permeable Membrane
The hydroxide ion selective permeable membrane is independently developed by Tingrun. This anion membrane not only possesses the characteristics of a typical anion membrane but also has a high selectivity for hydroxide ions. It effectively retains other anions such as Cl-, SO₄²-, NO3-, with a retention rate of over 95%. Therefore, this membrane can be used to separate salt and alkali. If ion precipitation is not a concern, it can achieve 100% separation of alkali and salt.Properties of bipolar ion exchange membranes :
Item |
Index |
Appearance |
Light gray/brown |
Working temperature |
15—40℃ |
Thickness(mm) |
0.15-0.18 |
Perm-selectivity (%) |
>97 |
Area Resistance(Ω·cm2) |
2.5—3.5 |
Rupture strength |
≥0.25Mpa |
Scope of usage |
To separate the acid and salts |

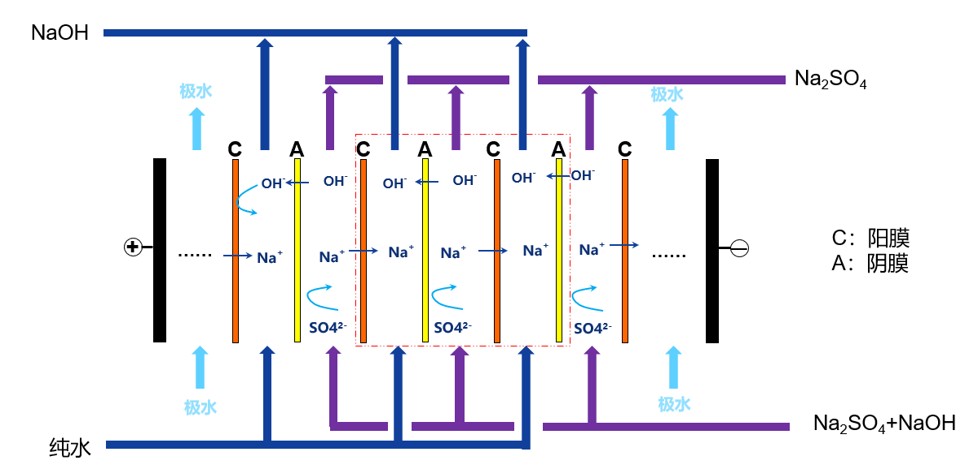

Working Principle:
Due to the unique property of selective permeability of hydroxide ions, the anion membrane can be stacked with the acid-resistant cation membrane to form an electrodialysis module. This module can then be used to separate alkali and salts in alkaline wastewater, while also concentrating the alkali
Applications:
This can be used to separate alkali and salt in acidic wastewater through electrodialysis, while also concentrating the acidPacking Size
400*200mm per sheet400*800mm per sheet
550*1100mm per sheet
600*1200mm per sheet
